LACH DIAMANT at AMB in Stuttgart: NEW: UltraThin Precision Cutting Wheels

LACH DIAMANT at AMB in Stuttgart:

NEW: UltraThin Precision Cutting Wheels

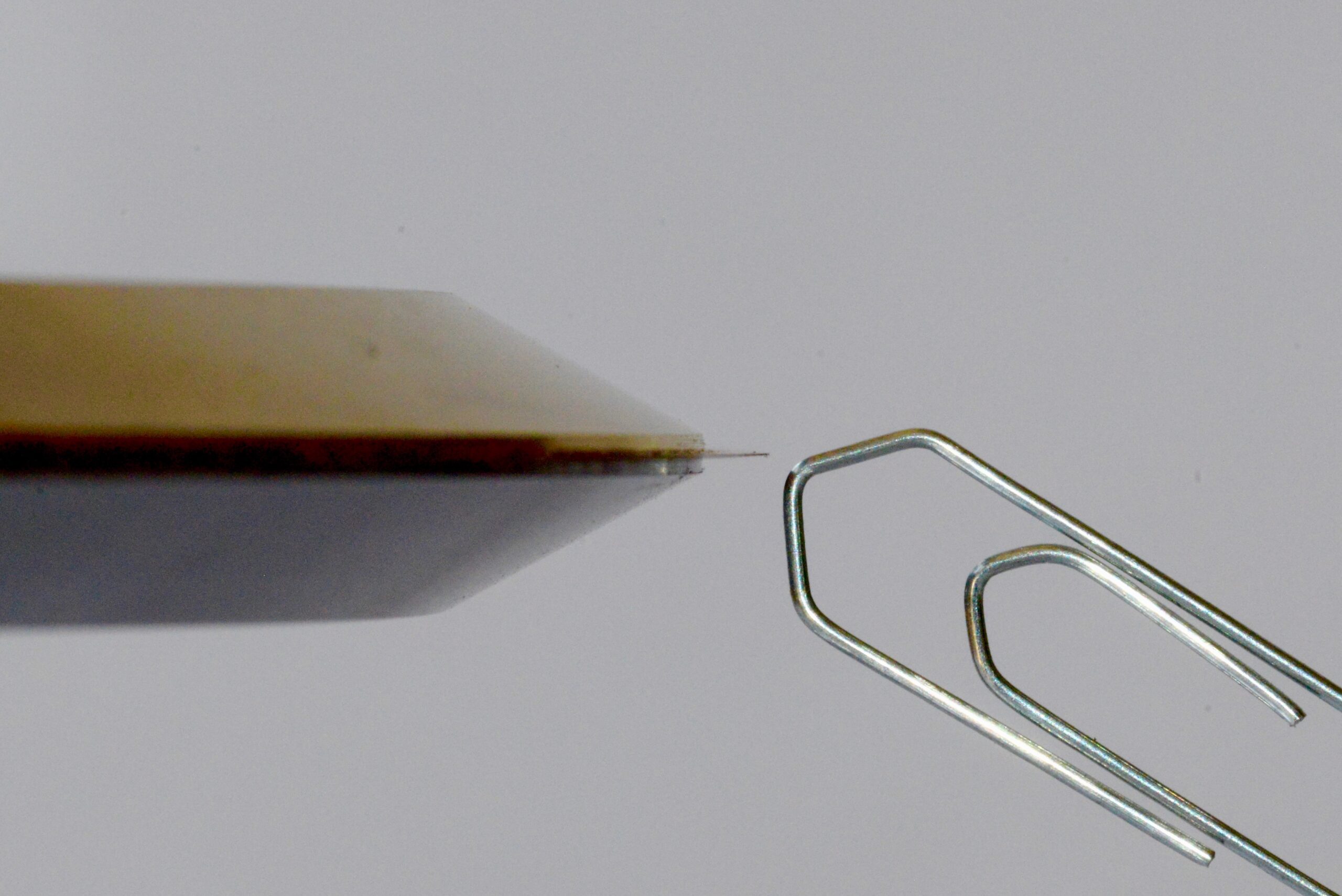

LACH DIAMANT developed new technologies to allow for the production of diamond and CBN cutting wheels with a cutting width of up to 0.02 mm (20 µm), which can be increased in µm increments.

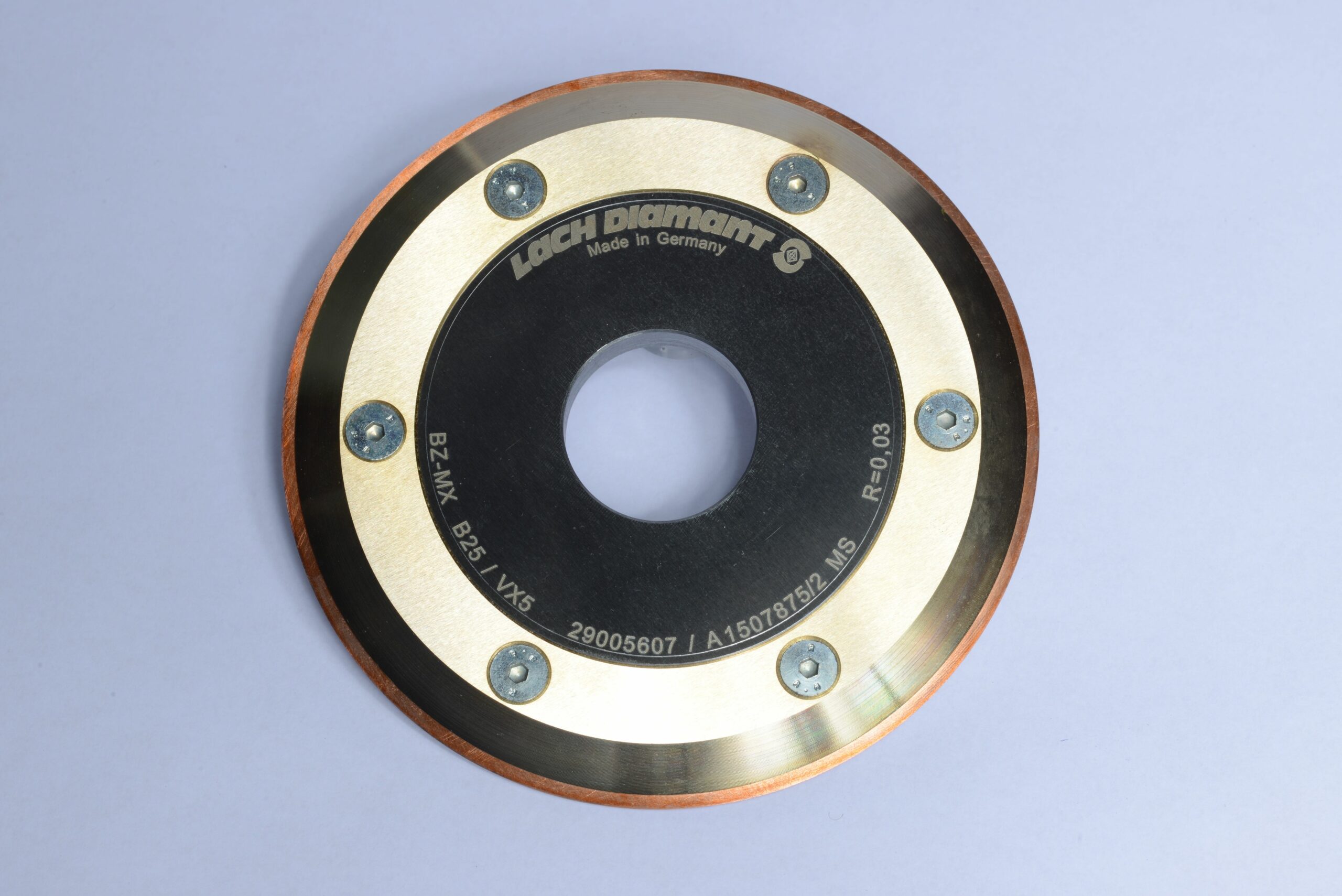

UltraThin by LACH DIAMANT is a multi-part precision cutting wheel – available in resin, metal and electro-plated bonds – with a diameter of up to 500 mm; cutting width varies according to the respective diameter.

Cutting depths of up to 15 mm – even in extremely rigid surfaces – are possible with LACH DIAMANT’s UltraThin cutting wheels.

The innovative core system of UltraThin provides not only the lowest cutting widths, but also allows a multiple re-coating of the diamond and CBN grinding layers, so that the cores can be reused multiple times.

UltraThin precision cutting wheels meet highest requirements, even micromechanical specifications. Examples: Chip breaker grooves in the micro tool industry. Examples from medical technology are grinding of wire rolls, or machining of green ceramic and semiconductors. There are many other possible applications for this amazing innovation.

More information will be available at AMB Stuttgart, Germany, from Sept. 13th to 17th 2016, Hall C2, Stand 2B14 or at www.lach-diamant.de
