LACH DIAMANT presents another World Innovation at EMO
Drilling into solid Aluminium Material – Super Fast –

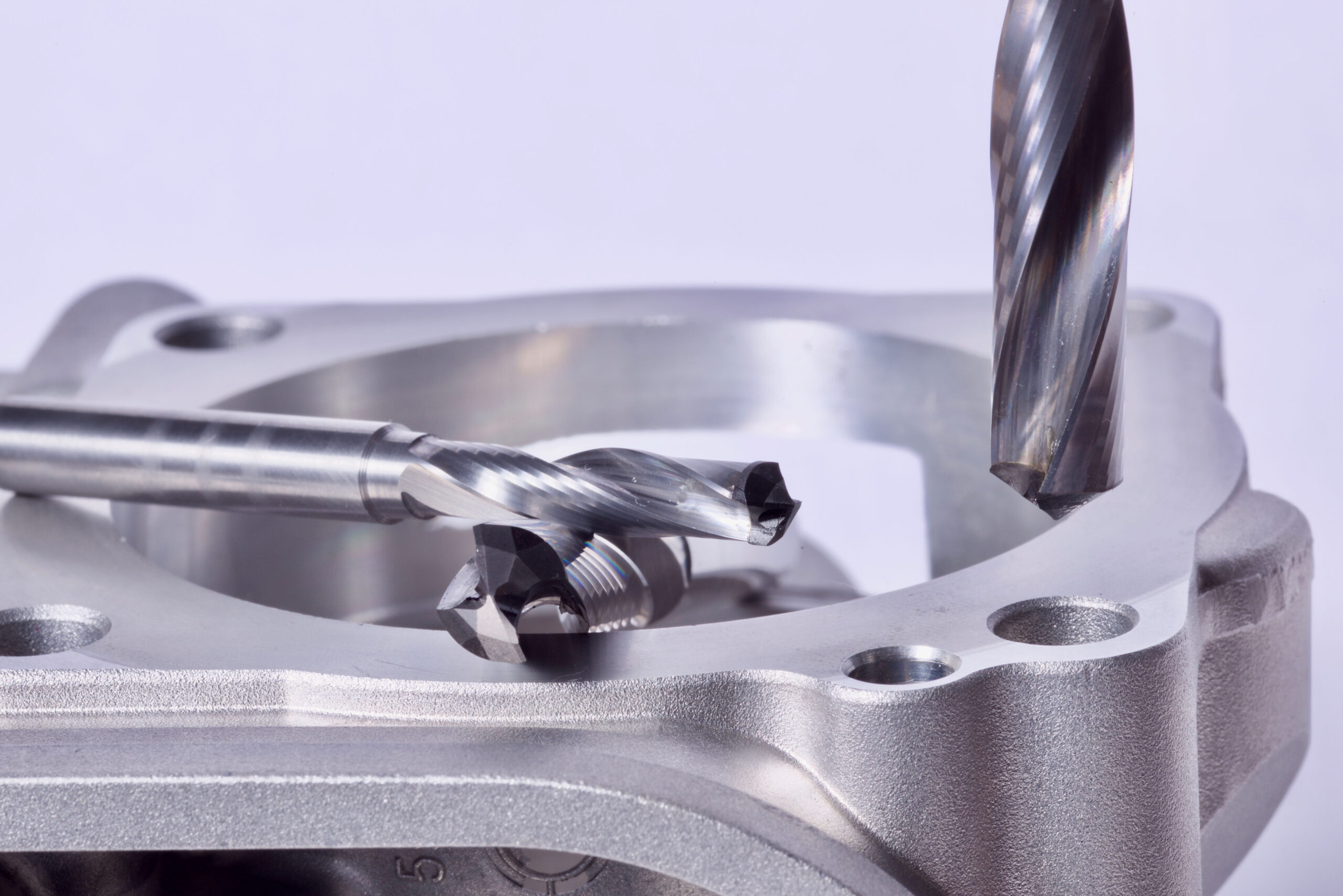

at highest Quality up to h6 – with spiral PCD Drill »PS-plus«
Based on the previous success of PCD drill type »PS« during burr and delamination free machining of fibre composites – also in combination with aluminium – so-called stacks components – LACH DIAMANT developed the PCD drill type »PS-plus«.
»PS-plus« drills show highest efficiency and quality for a diameter range of 2.5 up to 12 mm and time savings up to 75 %. A long tool life makes »PS-plus« drills the ideal choice for maximum machine utilization and unmanned shifts.
The trouble-free use of these PCD drills normally saves 2-3 previously necessary work steps, such as pre-drilling/drilling of pilot holes, drilling and even reaming when aiming for burr-free quality up to h6. Optimal chip removal is guaranteed via MQL or coolants. For drill diameters over 5.0 mm, »PS-plus« drills will be delivered with internal cooling.
»PS-plus« drills are designed for maximum cutting speeds and feeds and therefore guarantee shortest cycle times.
PCD drills type »PS-plus« are super fast tools for serial production and drilling into solid material, e. g. for all aluminium or die-cast housing components, extruded or drawn parts, aluminium turning parts and in general for all pinhole, thread and core drilling from 2.5 to 12 mm.
Of course »PS-plus« is also available as step drill tool.
Moreover, type »PS-plus« PCD drills are ideal for aluminium and fibre composite components in today’s automobile and aircraft manufacturing industries.
More information is also available from LACH DIAMANT at EMO, hall 4, stand D41 or at www.lach-diamant.de
